      產品展示PRODUCTS


      您當前的位置：首頁 > 產品展示 > 焊接專用定氧儀 > 充氣管吹掃系統 > I-Purge?充氣管吹掃系統




















      I-Purge?充氣管吹掃系統


      產品型號：I-Purge?


      產品品牌：AQUASOL



      產品簡介：
                      最靈活且適應性強的管道凈化解決方案






























      I-Purge?充氣管吹掃系統


      關于
      革命性的、正在申請的I-Purge模塊化充氣氣囊系統是目前創新性和多功能性的管道排氣系統。I-Purge在管道排氣和焊接過程中創造了不透水密封，限度地減少了排氣，節省了時間和成本，同時實現了穩定且高質量的焊接效果。
      該系統在美國制造，長期可重復使用氣囊系統使操作員能夠通過一個可互換方案滿足各種排氣需求。I-Purge配備了多項高度的功能，如快速連接接頭，可卡入并方便組裝和拆卸組件。I-Purge還配備了加長且高耐熱的束帶，使氣囊能夠放置在熱影響區之外，并足以適應任何預熱或高溫應用。
      這些的功能使操作員能夠創建多種配置，包括單面管塞和減管器。氣囊尺寸從2英寸到70英寸（51-1778毫米）不等，可以單獨購買，也可以作為整套系統購買，如果需要更大尺寸或更換部件，這是一項明顯的優勢。
      I-Purge非常適合制造車間，憑借其的設計超越現有技術，為所有管道清洗需求提供完整解決方案
      特色與優勢

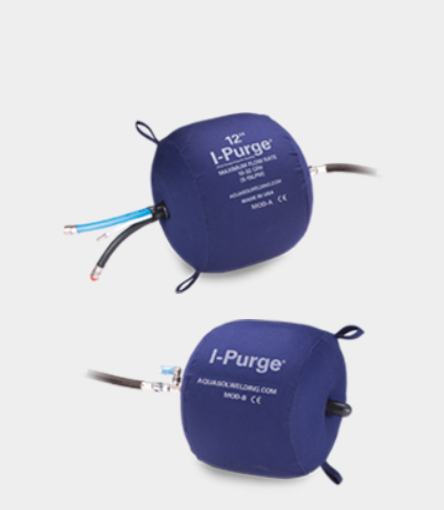

      充氣水囊模塊A和B型
      • 在美國制造，采用品質的材料
      • 充氣的氣囊在管道壁上形成不透水、氣密的密封
      • 防火花、耐用的外墻
      • 重型室內充氣包
      • 可重復使用且持久的溶液，用于清洗同一直徑的多根管道

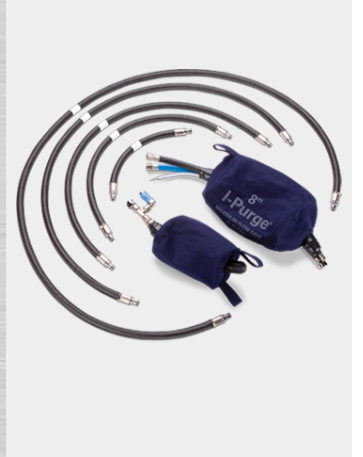

      高溫延長背帶

      • 內部軟管和保護性外部玻璃纖維套筒，能夠承受高達1200°F（650°C）的高溫
      • 柔性橋式線束可以輕松穿過管道，包括彎頭和三通，超過90°
      • 抗扭結軟管確保持續供氣
      • 配備發光指示器，確保根隙準確對齊

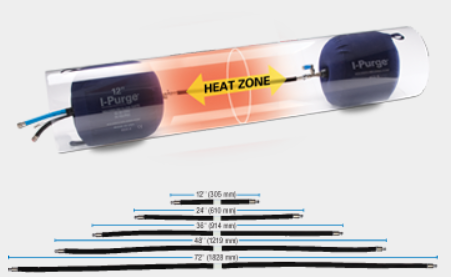

      • 市面上有多種長度的線束，以適應預熱和高溫應用中的熱影響區（HAZ）
      • 36英寸及以上的I-Purge配備高流量線束以加快充氣速度

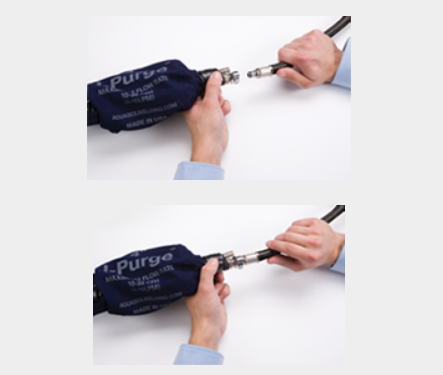

      快速連接可更換接頭
      • 按鈕功能使模塊能在幾秒鐘內卡入定位
      • 的技術帶來了更大的靈活性和易于組裝——使用戶能夠創建多種配置
      • 更換和更換組件簡便，避免昂貴的重新購買整套系統，備件可購買
      • 防腐蝕的成熟鎖具，確保牢固連接

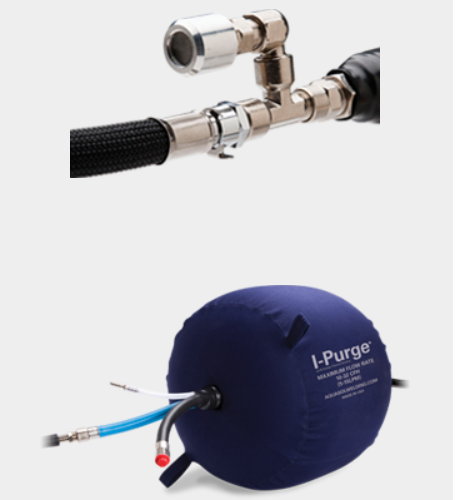

      專有的泄壓閥
      • 工廠預設的泄壓閥實現流量，同時縮短安裝時間并減少氣體消耗
      • 有助于維護管道壁的密封
      • 防止過度通脹的風險
      • 低矮型安全閥適用于2英寸和3英寸型號
      惰性氣體擴散器
      • 申請中技術
      • 通過均勻分散惰性氣體在焊區內各個方向，減少湍流，提高焊縫質量和一致性

      • 三流內管系統（藍、黑、白三色軟管）
      • 多個進排氣口，加快效率
      • 獨立連接：
      • 藍色——?dú)饽?br/>膨脹 初始功能是充氣氣囊，然后用稀有氣體充盈焊縫區
      • BLACK – 增加焊接區
        內氣體分布 為了加快清洗，次級（BLACK）凈化軟管用于向焊接區注入惰性氣體并加快氧氣的排氣速度
        白色 – 排氣連接

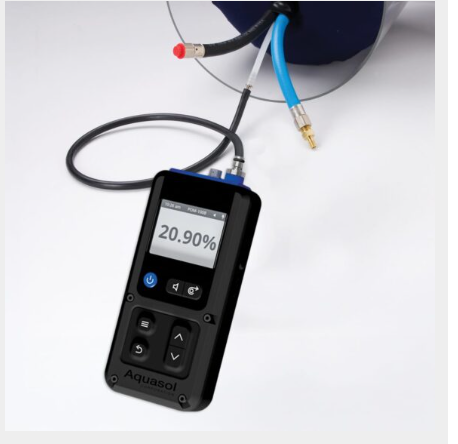

        將此軟管連接到氧氣監測器，如Aquasol的POM-100B，可獲得低100 PPM（0.01%）的讀數，用于焊接區的持續或點氧監測        ?

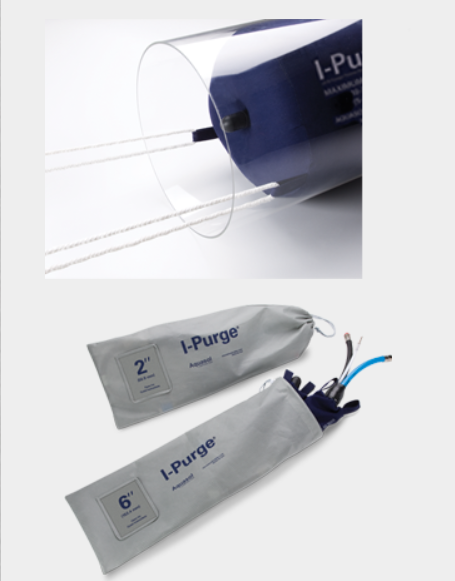

      拉環
      • 強力拉環可以連接到繩索或鏈條上，用于插入或取出I-Purge。
      • 在放置或取出前，膀胱必須放氣
      • 應在拉線上施加中等張力（約5磅），以防止線束在安裝和作過程中下垂













      攜帶包
      • 焊接完成后，氣囊可以放氣、取出、清洗，并存放在提供的攜帶袋中
      • 在大多數工業工作環境中，攜帶袋在未使用時可以保護膀胱免受灰塵和雜物的侵害，延長使用壽命











      I-凈化減針
      • 與其他帶有接頭的型號不同，管子減小器只需簡單連接兩個直徑不同但相似的氣囊即可輕松制作
      • 將不同尺寸的管道組合起來，創造的管道配置

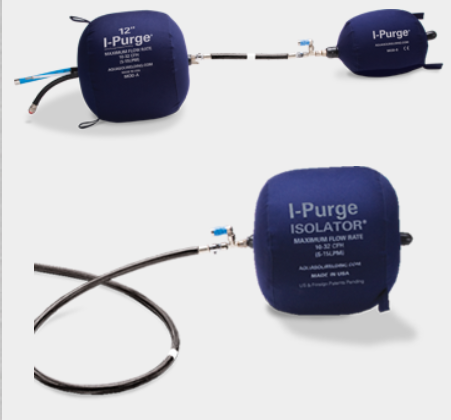

      I-Purge 隔離器充氣管塞和單排氣囊
      • I-Purge隔離器設計為作為管道塞，適用于多種應用，包括閥門或罐體的清洗，以及非清洗的管道系統密封等維護、清潔和檢查等應用
      • 采用重型材料建造，旨在承受石化、公用事業和建筑行業的極端環境
      I-Purge? 隔離器適配器：
      充分利用我們的模塊化設計！
      將您的I-Purge?雙袋系統改造成單側隔離器，以應對復雜的焊接幾何設計。我們的I-Purge?和I-Purge ?X水囊均可轉換，采用創新的模塊化設計！
      I-Purge? Mod-A 適配器： Mod-A I-Purge? 水囊的快速連接擴散器
      I-Purge? Mod-B 適配器： 一根帶接頭的軟管，用來連接你的I-Purge? Mod B水囊和氬氣罐

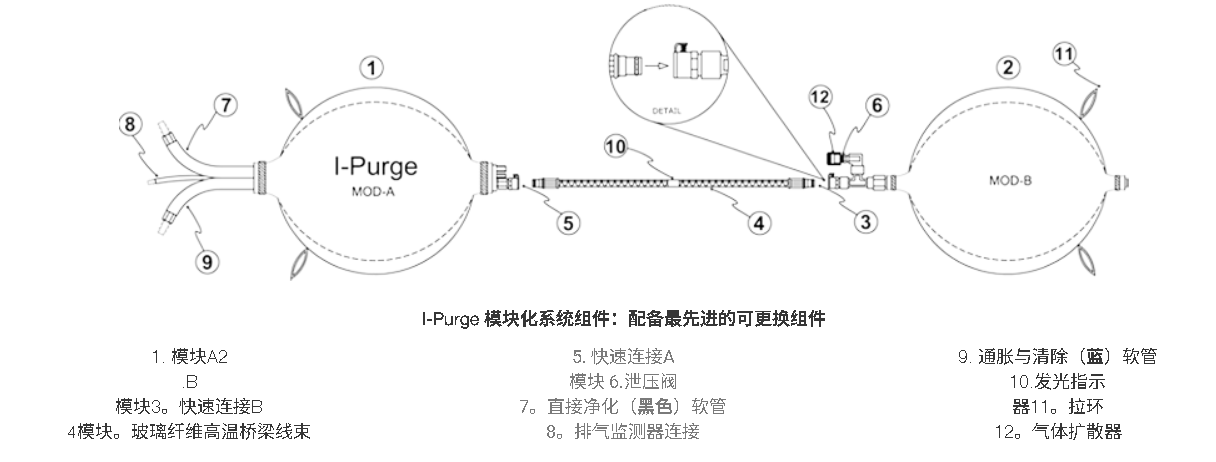

      I-Purge的工作原理
      型號與尺寸
      Item No
      Dimensions
      Standard Harness Length
      Description

      		English
      Metric
      English
      Metric

      ABLD 2
      2″
      51 mm
      11″
      279 mm
      2″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 3
      3″
      76 mm
      11″
      279 mm
      3″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 4
      4″
      102 mm
      11″
      279 mm
      4″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 5
      5″
      127 mm
      11″
      279 mm
      5″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 6
      6″
      152 mm
      11″
      279 mm
      6″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 8
      8″
      203 mm
      11″
      279 mm
      8″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 10
      10″
      254 mm
      12″
      305 mm
      10″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 12
      12″
      305 mm
      12″
      305 mm
      12″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 14
      14″
      356 mm
      16″
      406 mm
      14″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 16
      16″
      406 mm
      16″
      406 mm
      16″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 18
      18″
      457 mm
      16″
      406 mm
      18″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 20
      20″
      508 mm
      18″
      457 mm
      20″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 22
      22″
      559 mm
      18″
      457 mm
      22″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 24
      24″
      610 mm
      18″
      457 mm
      24″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 26
      26″
      660 mm
      20″
      509 mm
      26″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 28
      28″
      711 mm
      20″
      509 mm
      28″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 30
      30″
      762 mm
      20″
      509 mm
      30″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 32
      32″
      813 mm
      20″
      509 mm
      32″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 34
      34″
      864 mm
      20″
      509 mm
      34″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 36
      36″
      914 mm
      20″
      509 mm
      36″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 38
      38″
      965 mm
      36″
      914 mm
      38″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 40
      40″
      1016 mm
      36″
      914 mm
      40″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 42
      42″
      1066 mm
      36″
      914 mm
      42″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 44
      44″
      1117 mm
      36″
      914 mm
      44″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 46
      46″
      1168 mm
      42″
      1067 mm
      46″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 48
      48″
      1219 mm
      42″
      1067 mm
      48″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 50
      50″
      1270 mm
      42″
      1067 mm
      50″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 52
      52″
      1321 mm
      42″
      1067 mm
      52″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 54
      54″
      1372 mm
      42″
      1067 mm
      54″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 56
      56″
      1422 mm
      42″
      1067 mm
      56″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 58
      58″
      1473 mm
      42″
      1067 mm
      58″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 60
      60″
      1524 mm
      42″
      1067 mm
      60″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 62
      62″
      1575 mm
      42″
      1067 mm
      62″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 64
      64″
      1626 mm
      42″
      1067 mm
      64″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 66
      66″
      1676 mm
      42″
      1067 mm
      66″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 68
      68″
      1727 mm
      42″
      1067 mm
      68″ I-Purge Double Purge Bag System with High Heat Harness
      ABLD 70
      70″
      1778 mm
      42″
      1067 mm
      70″ I-Purge Double Purge Bag System with High Heat Harness

      I-Purge Isolator?
      Item No
      Dimensions
      Description

      English
      metric

      ISO 2
      2"
      51 mm
      2" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 3
      3"
      76 mm
      3" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 4
      4"
      102 mm
      4" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 5
      5"
      127 mm
      5" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 6
      6"
      152 mm
      6" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 8
      8"
      203 mm
      8" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 10
      10"
      254 mm
      10" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 12
      12"
      305 mm
      12" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 14
      14"
      356 mm
      14" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 16
      16"
      406 mm
      16" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 18
      18"
      457 mm
      18" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 20
      20"
      508 mm
      20" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 22
      22"
      559 mm
      22" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 24
      24"
      610 mm
      24" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 26
      26"
      660 mm
      26" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 28
      28"
      711 mm
      28" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 30
      30"
      762 mm
      30" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 32
      32"
      813 mm
      32" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 34
      34"
      864 mm
      34" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 36
      36"
      914 mm
      36" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 38
      38"
      965 mm
      38" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 40
      40"
      1016 mm
      40" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 42
      42"
      1066 mm
      42" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 44
      44"
      1117 mm
      44" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 46
      46"
      1168 mm
      46" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 48
      48"
      1219 mm
      48" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 50
      50"
      1270 mm
      50" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 52
      52"
      1321 mm
      52" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 54
      54"
      1372 mm
      54" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 56
      56"
      1422 mm
      56" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 58
      58"
      1473 mm
      58" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 60
      60"
      1524 mm
      60" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 62
      62"
      1575 mm
      62" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 64
      64"
      1626 mm
      64" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 66
      66"
      1676 mm
      66" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 68
      68"
      1727 mm
      68" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      ISO 70
      70"
      1778 mm
      70" I-Purge Isolator One-Sided Plug with 10' Hose and Valve
      附件組件可選線束長度
      Item No
      Dimensions
      Description

      English
      Metric

      ABLD-ELH-24
      24"
      610 mm
      24" (2′) Extended Length High Heat Harness
      ABLD-ELH-36
      36"
      914 mm
      36" (3′) Extended Length High Heat Harness
      ABLD-ELH-48
      48"
      1219 mm
      48" (4′) Extended Length High Heat Harness
      ABLD-ELH-72
      72"
      1828 mm
      72" (6′) Extended Length High Heat Harness
      ABLD-ELH-CUSTOM
      Any Size
      Any Size
      Custom Lengths Available Upon Request
      ABLD-CNADP
      NA
      NA
      1/4" Female MPT to 1/4" Female BSPP Conversion
